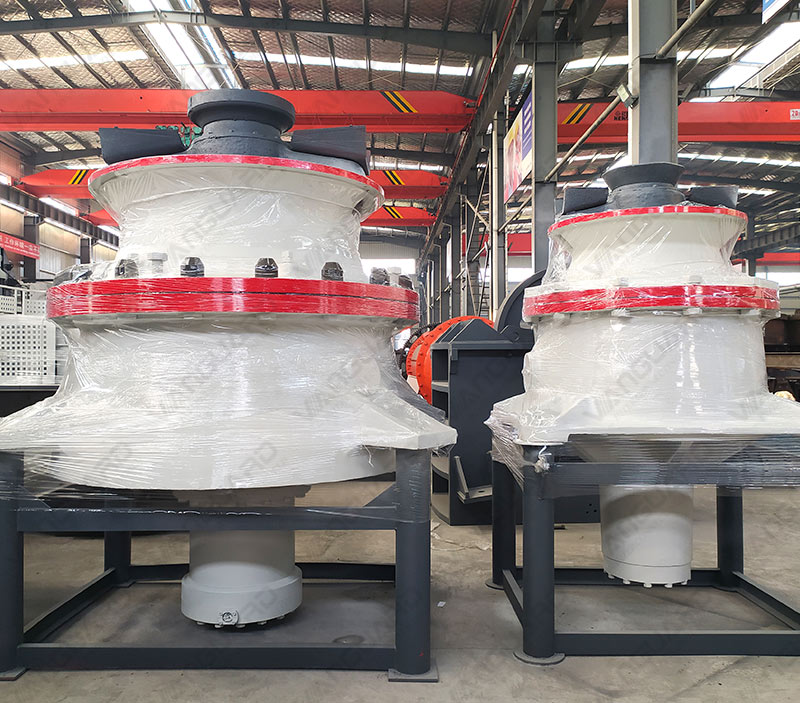

Series Single-Cylinder Cone Crusher
CS/CH

In order to meet the needs of market development our company develops an efficient fine crusher single cylinder hydraulic cone crusher. With the concise and compact structure it can adjust discharge gate directly prevent iron and clear the cavity by the unique design of cylinder structure at the bottom.

WATCH VIDEO

TECHNICAL DATA

Model	Power (KW)	Cavity Type	Max Feed Size (mm)	Throughput(t/h) of Crusher Running at CSS(mm)
Model	Power (KW)	Cavity Type	Max Feed Size (mm)	19	22	25	29	32	35	38	41	44	48	51	54	60	64	70	76	83
CS820	90	EC	240		85	92-115	101-158	107-168	114-143	121
CS820	90	C	200	70	76-95	82-128	90-112	96
CS830	160	EC	360			126	138-173	147-230	156-293	165-310	174-327	183-344	196-306	205-256	214
		C	300		108	116-145	127-199	135-254	144-270	152-285	161-301	169-264	108
		MC	235	91	98-123	106-166	116-218	124-232	131-246	139-261	147-275	154-241	165
CS840	250	EC	450						267	282-353	298-446	313-563	334-601	349-524	365-456
		C	400				225	239-299	254-381	269-484	284-511	298-448	318-398	333
		MC	300			195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317
CS860	315	EC	560								349	368-460	392-588	410-718	428-856	465-929	489-978	525-1050	562-983	604
CS860	315	C	500							318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631

Note: MC = Medium thick, C = thick, EC = special thick

Model	Power(KW)	Cavity Type	Max Feed Size(mm)	Throughput(t/h) of Crusher Running at CSS
Model	Power(KW)	Cavity Type	Max Feed Size(mm)	4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
CH820	90	EC	135				46	50-85	54-92	58-99	62-105	66-112	76-128
		C	90				43-53	46-89	50-96	54-103	57-110	61-118	70
		M	65			36-44	38-74	41-80	45-76	48-59
		MF	50		36	38-67	40-71	44-68	47-53
		F	38	27-34	29-50	31-54	32-57	35-48	38
		EF	29	30-40 （ 80% fineness is less than 4.5-5.5mm）
CH830	160			4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
		EC	185					69-108	75-150	80-161	86-171	91-182	104-208	115-208
		C	145					66-131	71-142	76-152	81-162	86-173	98-197	109-150
		MC	115				57	62-140	67-151	72-162	77-173	82-184	93-145
		M	90				64-84	69-131	75-142	80-152	86-162	91-154	104
		MF	75			61	65-106	70-115	76-124	81-126	87-114	92
		F	50		48-78	51-83	54-88	59-96	63-103	68-105	72-95	77
		EF	35	70-90 （ 80% fineness is less than 5-5.6mm）
CH840	250			4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
		EC	215						114-200	122-276	131-294	139-313	159-357	175-395	192-384
		C	175					101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
		MC	140					97-122	105-262	113-282	120-301	128-320	146-328	161-242
		M	110					117-187	126-278	136-298	145-318	154-339	176-281	194
		MF	85				114	124-227	134-245	144-263	153-281	163-299	186-248
		F	70			90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
		EF	38	100-125 （ 80% fineness is less than 6-7.5mm）
CH860	315			4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
		EC	275						177	190-338	203-436	216-464	246-547	272-605	298-662	328-511
		CX	245						174-194	187-374	200-488	212-519	242-592	268-654	293-521	323-359
		C	215						171-190	184-367	196-480	209-510	238-582	263-643	288-512	317-353
		MV	175						162-253	174-426	186-455	198-484	226-552	249-499	273-364
		M	135						197-295	211-440	226-470	240-500	274-502	302-403
		MF	115					192	207-369	222-396	237-423	252-450	287-451	318-363
		F	85					195-304	210-328	225-352	241-376	256-400	292-401	323
		EF	65					211-293	227-316	244-298	261-290
CH870	500			4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
		EC	300								448-588	477-849	544-968	601-1070	658-1172	725-1291	782-1393	849-1512	906-1331
		C	240							406	433-636	461-893	525-1018	581-1125	636-1232	700-1357	756-1464	820-1461	876-1286
		MC	195							380-440	406-723	432-837	492-954	544-1055	596-1155	657-1272	708-1373	769-1370	821-1206
		M	155							400-563	428-786	455-836	519-953	573-1054	628-1154	692-1271	746-1372	810-1248	865-1098
		MF	100						379-424	407-716	434-765	462-814	527-928	582-942	638-789	702
		F	90					357-395	385-656	414-704	442-752	470-800	535-912	592-857	649-718
		EF	80				280-405	304-517	328-558	352-598	376-639	400-680	455-775	503-728	551-669
CH880	750			4	6	8	10	13	16	19	22	25	32	38	44	51	57	64	70
		EC	370									480-640	547-1277	605-1411	662-1546	730-1702	787-1837	854-1994	912-2128
		C	330									540-772	616-1232	681-1362	746-1492	821-1643	886-1773	962-1924	1027-1613
		MC	260								541	576-864	657-1231	726-1361	795-1490	876-1642	945-1771	1025-1538	1094-1231
		M	195								552-613	587-1043	669-1189	739-1314	810-1440	892-1586	962-1604	1045-1393	1115
		MF	130							514	549-933	584-993	666-1132	736-1251	806-1370	888-1420	958-1245
		F	120						531	570-832	609-888	648-945	739-985	816-885
		EFX	100					401-502	433-631	465-678	496-724	528-770	602-803	665-721
		EF	85				364-420	395-532	426-574	458-616	489-658	520-700	593-798	655-882	718-883	790
		EEF	75			309-356	328-441	356-479	384-517	412-554	440-592	468-630	534-575

Note: EEF = Ultra -fine EF = Subsidity EFX = Standard Deta F = fine mf MF = medium mc = medium coarse C = thick CX = quasi -thick EC = special thick

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
